BEECHCRAFT BONANZA ROD END BEARINGS

Bonanza Model 35 through G35
Rod Ends

BEECHCRAFT BONANZA ROD END BEARINGS
					Beech Parts Manual 35 - G35
Location		Rod End Part #	Qty.	Description	Figure	Page
Landing Gear	Nose Gear Actuator Rod	HM-5S**	(1)	Nose Gear Actuator Rod Front	Fig 56	Page 2-94
	Aft Rod	HML-6	(1)	Aft Rod end, rear	Fig 56	Page 2-94
	Aft Rod	HM-5S**	(1)	Aft Rod end, front	Fig 56	Page 2-94
	Nose Wheel Steering Mechanism	MD46-15	(1)	Aft rod end, connect to rudder pedals	Fig. 51	Page 2-87
	Nose Wheel Steering Mechanism	HM-4	(1)	Front Flexible steering link	Fig. 51	Page 2-87
	Right Main Doors	HM-4	(4)	Outer gear door	Fig. 46	Page 2-78
	Right Main Actuating Rod	HM-6	(1)	In board gear door	Fig. 42	Page 2-70
	Left Main Doors	HM-4	(4)	Outer gear door	Fig. 46	Page 2-78
	Left Main Actuating Rods	HM-6	(1)	In board gear door	Fig. 42	Page 2-70
Ailerons	Right Assy	HM4	(1)	control rod	Fig 24	Page 2-44
	Right Assy	HML-4	(1)	control rod	Fig 24	Page 2-44
	Left Assy	HM4	(1)	control rod	Fig 24	Page 2-44
	Left Assy	HML-4	(1)	control rod	Fig 24	Page 2-44
Aft Fuselage	Differential Control Assy	MD46-15	(4)	Differential Push Rods	Fig 38	Page 2-63
"L" Indicates left hand thread "S" Indicates a "Solid" rod end. ** "HM-5S" superceded by p/n 131553-5M (Source, Raytheon Tech Support)

List of rod end bearings distributors

HEIM RBC Bearings	RBC PDF Catalogs Rod End Catalog	Cross Reference
AURORA		Cross reference 2nd edition
SPHERCO
SEALMASTER

Landing gear

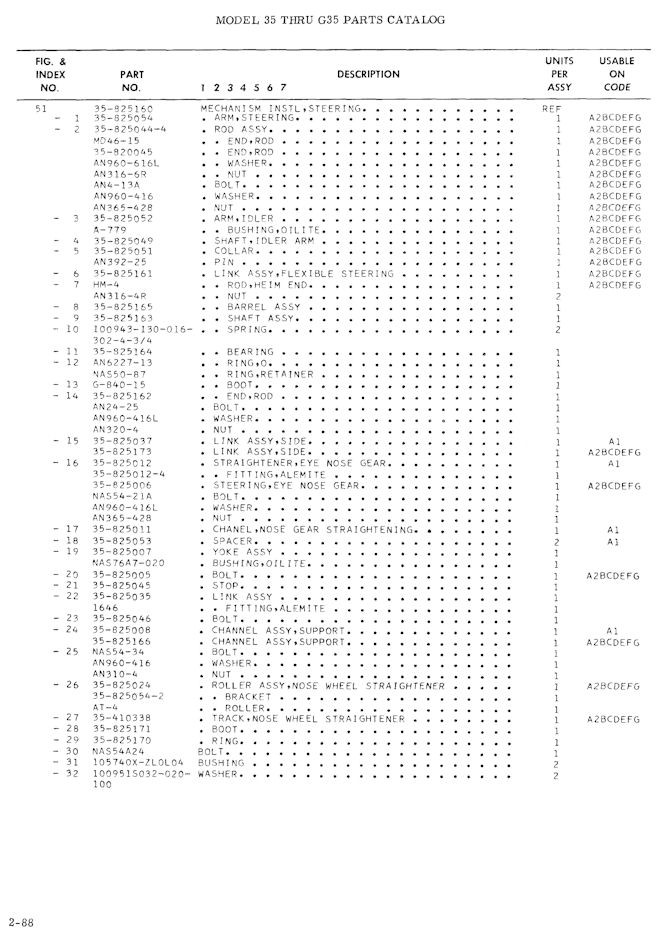

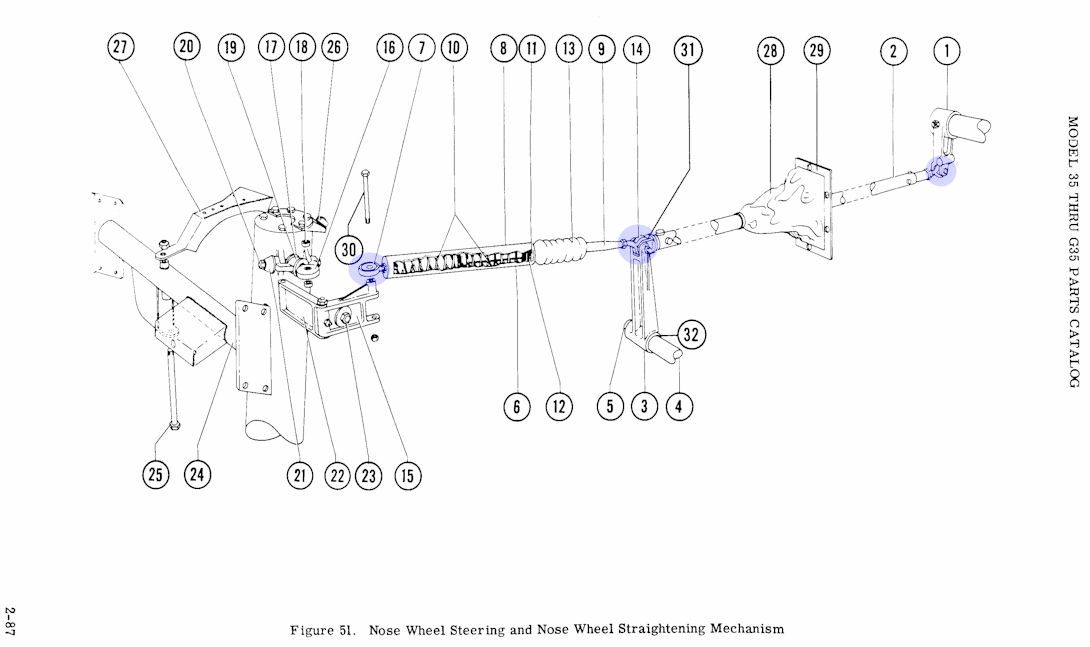

Steering Mechanism
Click to enlarge

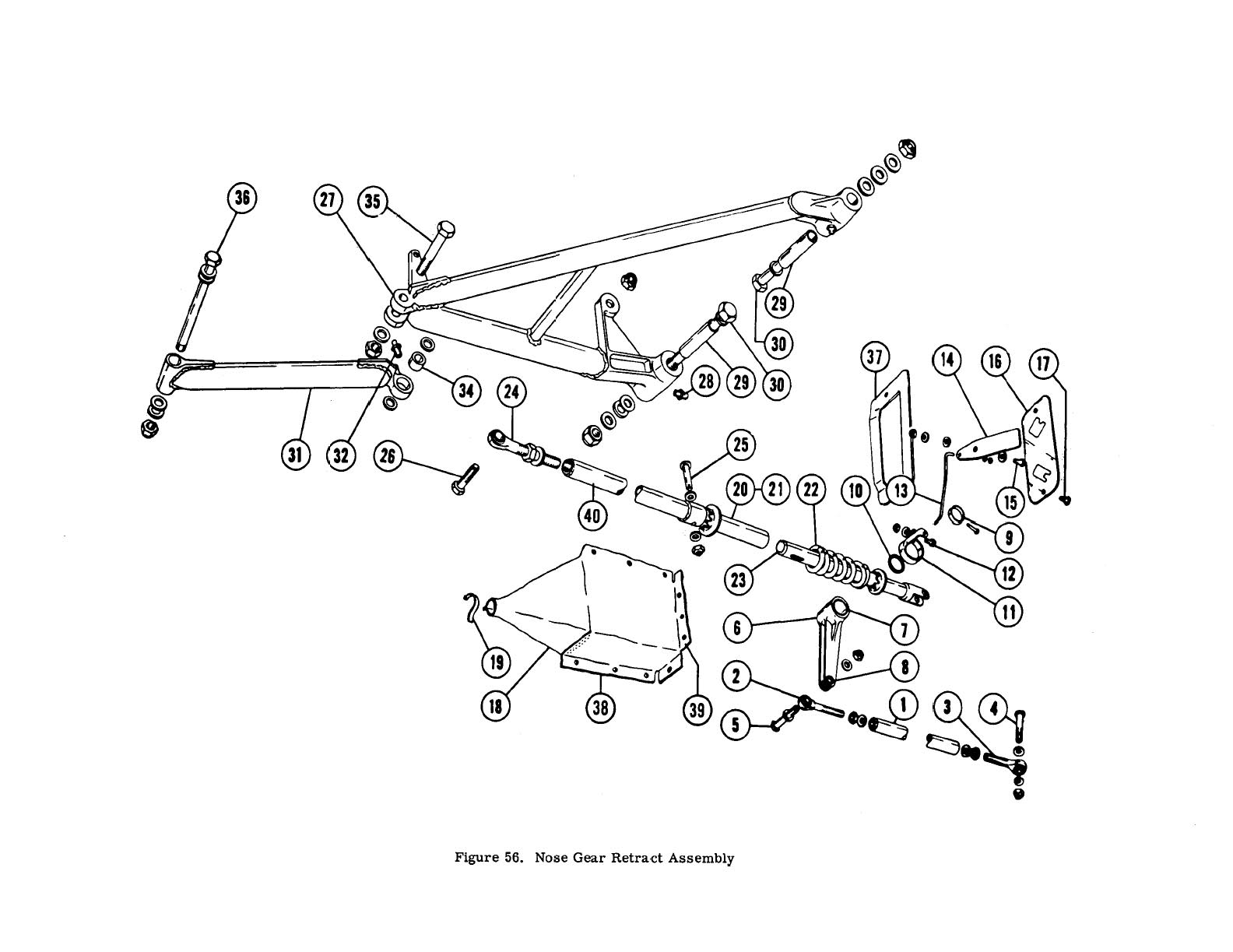

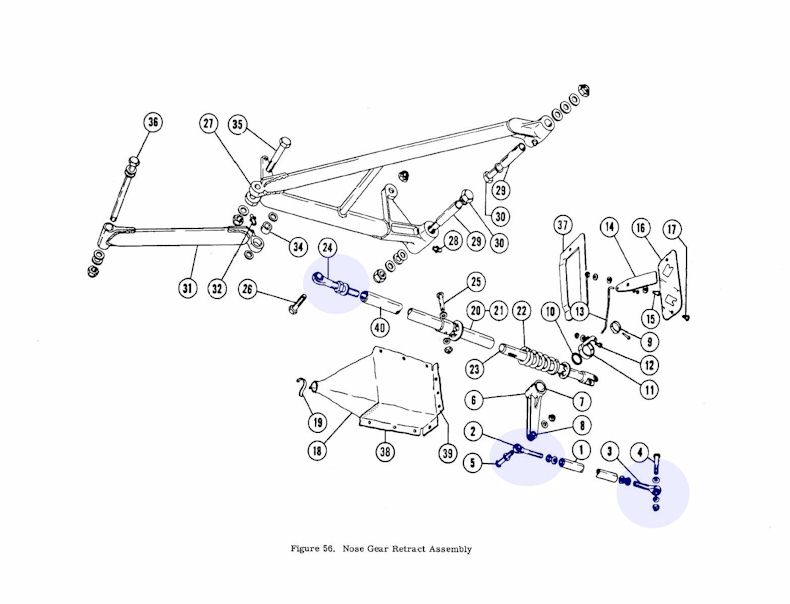

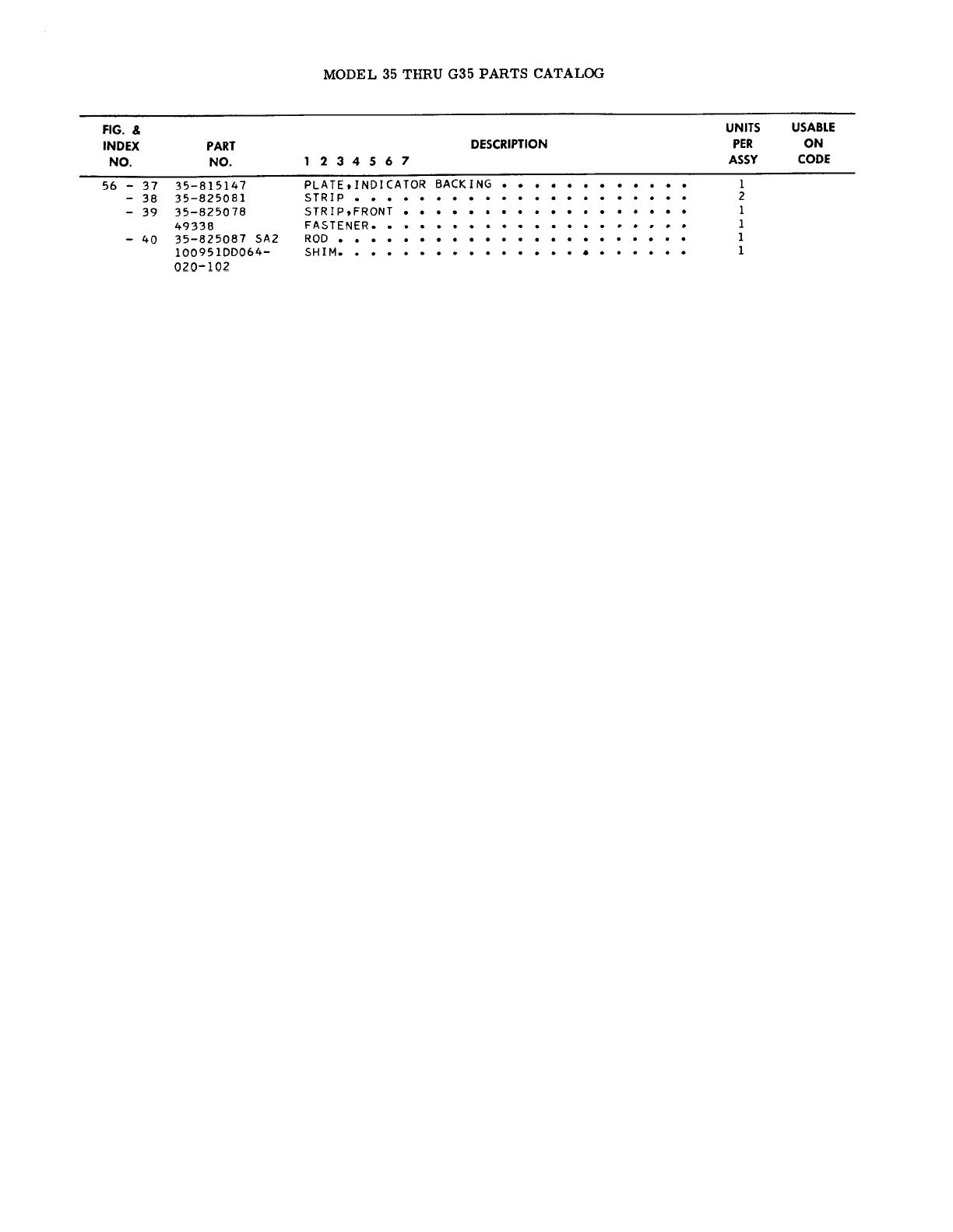

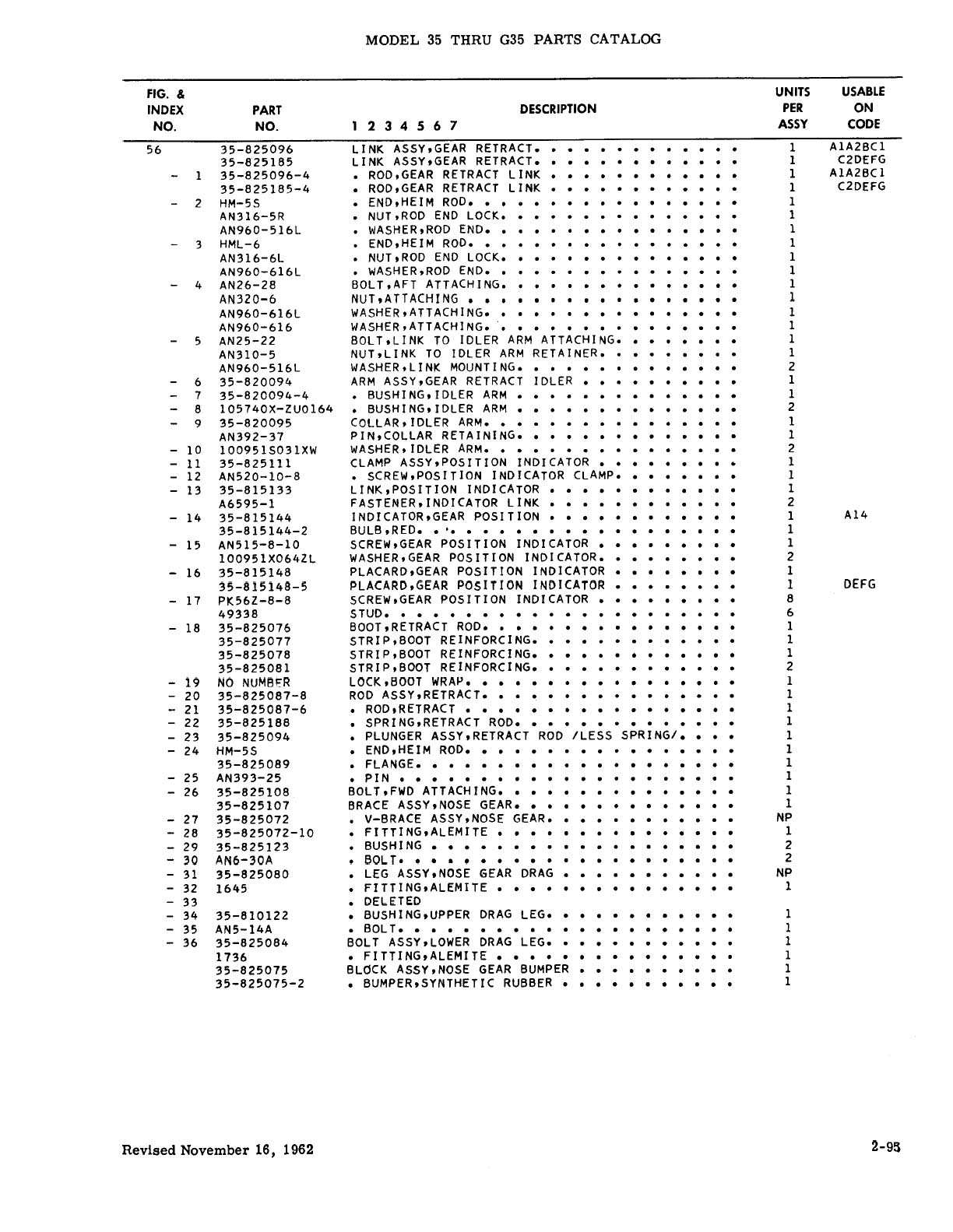

Nose Gear Mechanism
Click to enlarge

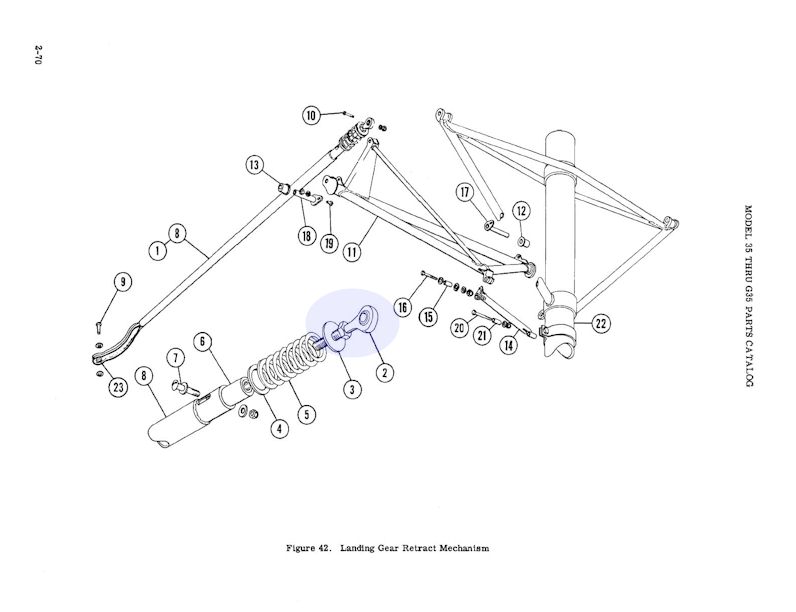

Main Landing Gear
Click to enlarge

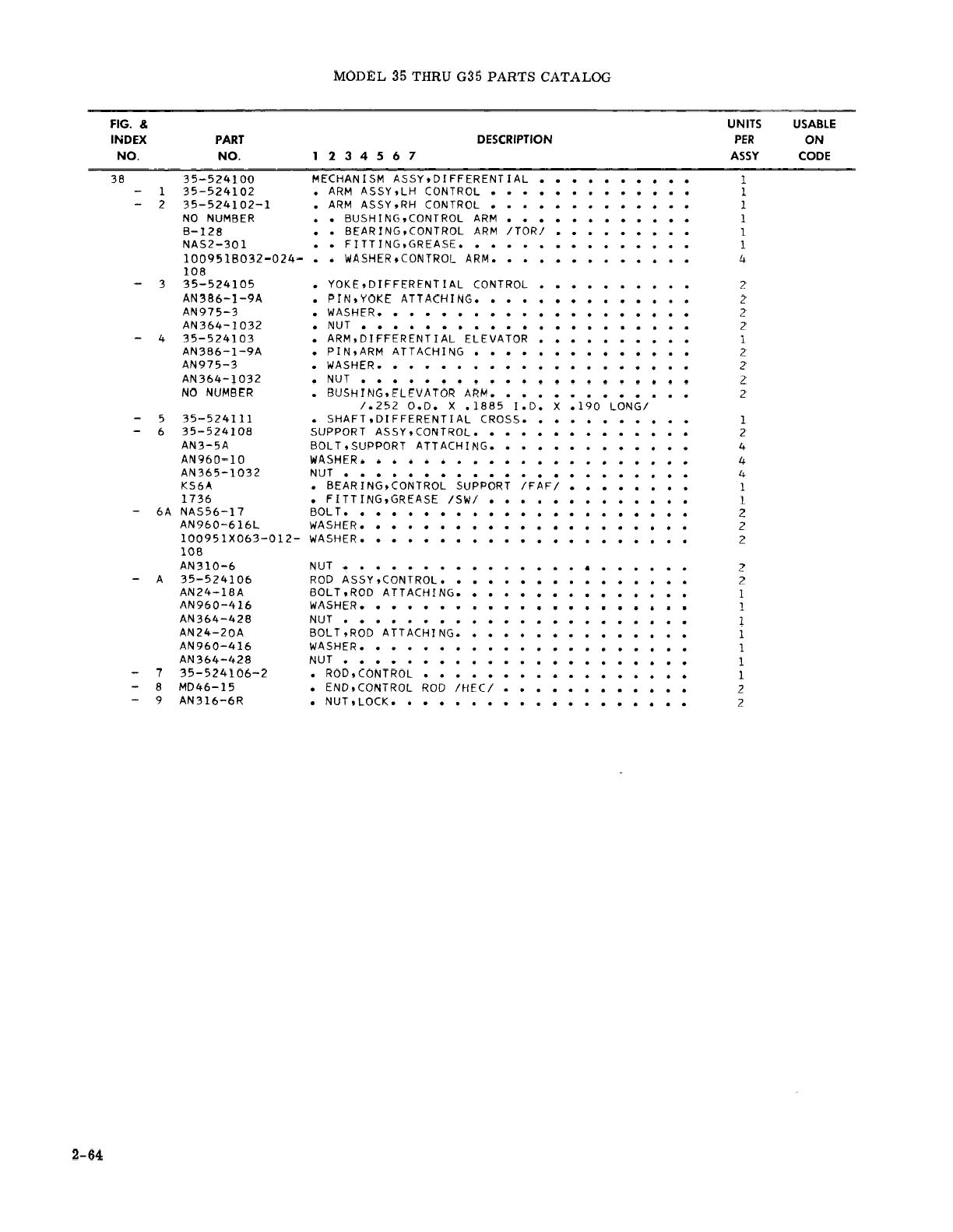

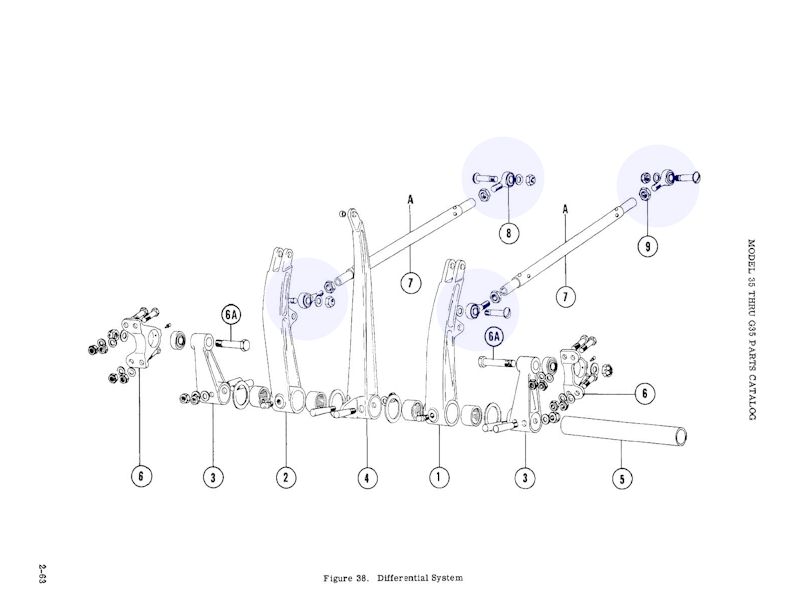

Aft Fuselage
Differential Assembly
Click to enlarge

Nose landing gear
PDF file

Main landing gear
PDF file

Aft Differential
PDF file

Rigging the landing gear
from
Beech Shop Manual
35 thru G35
