Landing Gear

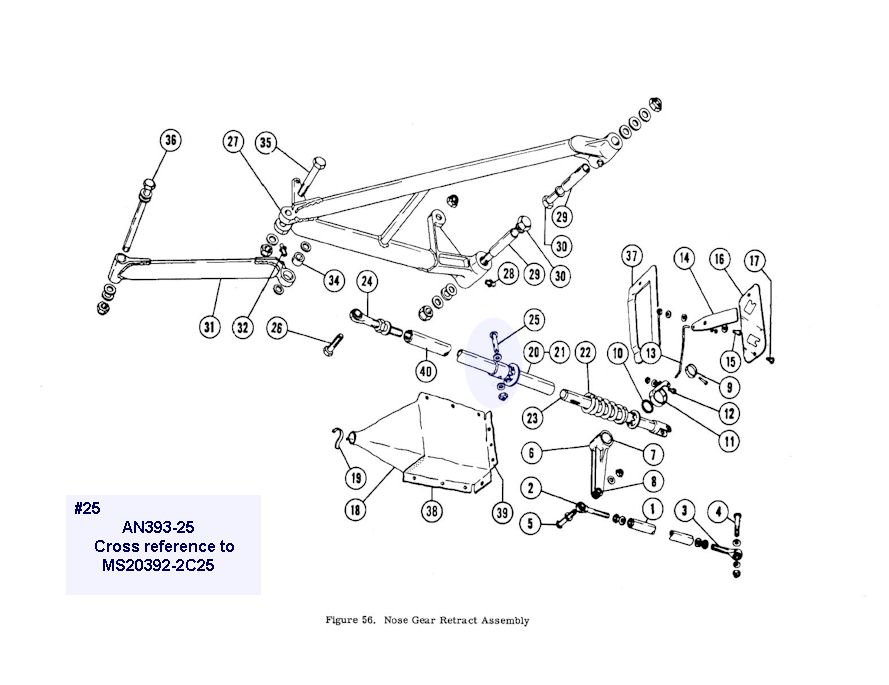

Nose Gear Plunger Rod and Clevis pin info.

35 thru G35

Click to enlarge

Service Bulletins & Service Letters

Installation of an improved
Nose Landing Gear Retract Rod Plunger
The new style rod is designed 7.5" longer

No. 1149
ATA Code 32-30
   Models 35 thru G35

The above Service Instruction supercedes this old Service Letter
 35-55

Calls for Kit 35-8007-1 S  ($409) from Raytheon

Plunger Rod New part 35-825094-4  ($204.99 from Raytheon)

Clevis Pin  (user either part #)  Replacement Sources

   Old Part r#  AN393-25            New Part # MS20392-2C25
The "C" designates allow steel (4037, 4130 or 8630) as the material Cadmium II plated

Barry Jay Aviation, Inc. MS20392-2C25

Aircraft Hardware and Fasteners, Stock or Available Items
 Genuine Aircraft Supply Co.
Wicks Aircraft Supply - Catalog Page 99
MS Series Fasteeners By- Emanon Aircraft Fasteners
D&D Aircraft Supply - Online Catalog
Available from Aircraft Spruce
www.girardfasteners.com
Integrity Fasteners, Inc. www.nutsnbolts.com
