Continental E185-1 Engine

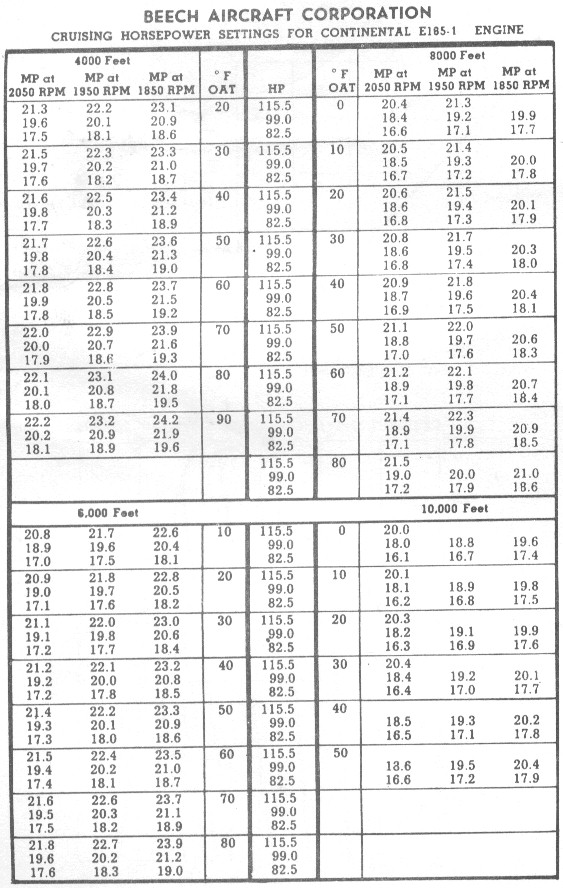

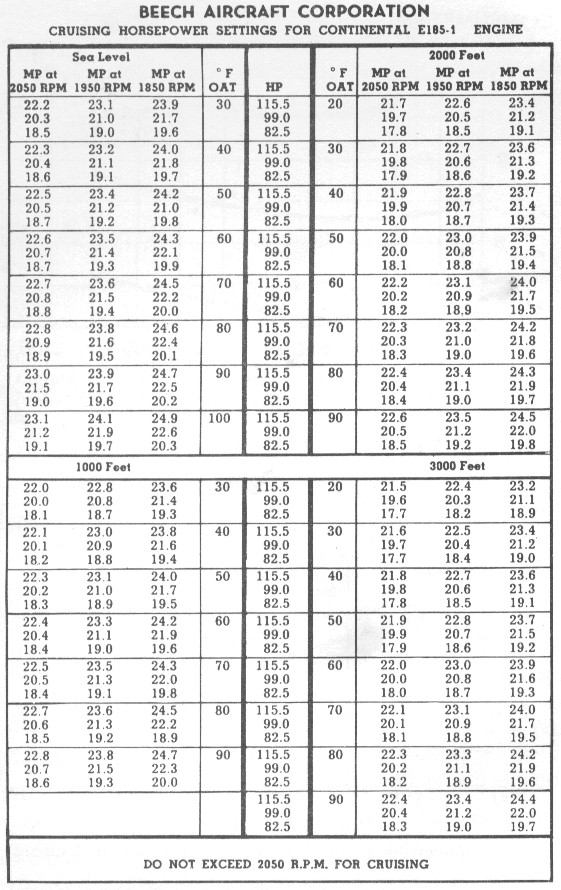

Bonanza Power Settings for E185-1 Engine


The above charts are from an original POH's and perhaps no longer valid. It is intended as reference only. You need to use the current data provided by Raytheon in the most recent POH.

(Click on image to enlarge)
