Ailerons

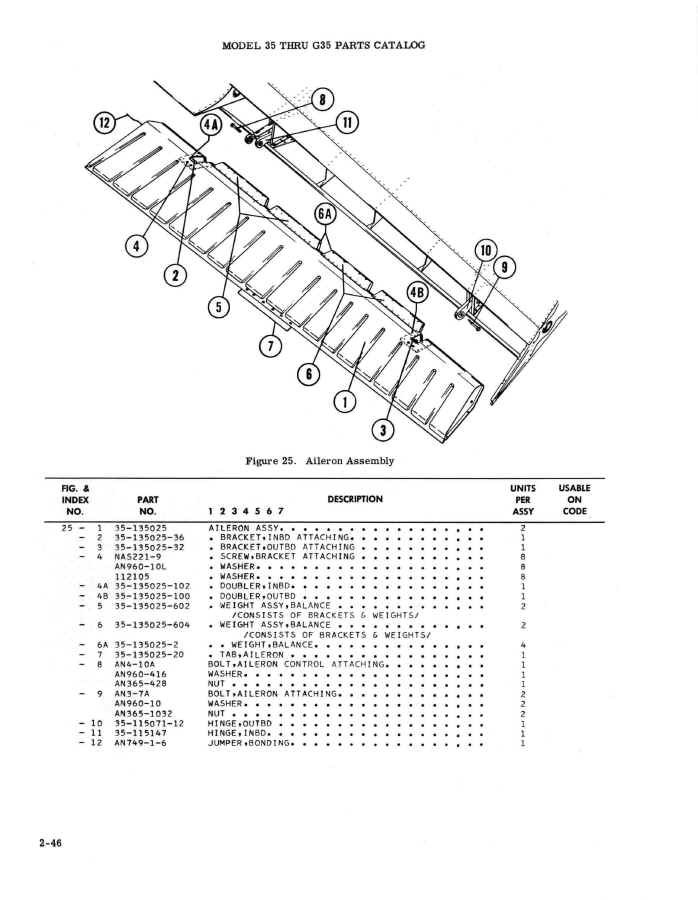

click on image to enlarge
Associated replacement AN hardware
|
Qty. |
Part # | Description | |
| 8 | NAS 221-9 | Bracket Attaching Screw | Original |
| 8 | MS27039-1-9 | This number
supersedes NAS221-9
either may be used |
Supersede |
| 8 | AN960-10L | Washer for above screw | |
| 1 | AN4-10A | Bolt Aileron Control Attach | |
| 1 | AN960-416 | Washer for above bolt | |
| 1 | AN365-428 | Lock nut for above bolt | |
| 2 | AN3-7A | Bolt for Aileron attach hinge | |
| 6 | AN960-10 | Washer for above bolt | |
| 2 | AN365-1032 | Lock nut for above bolt (get the all metal type |
OK so here's the story on the Aileron hardware. Notice that the above listed items have different quantities than listed in the Beech Parts Manual page at top. The aileron attach bolts are too long. You have to use a shorter bolt or add washers to each AN3-7A. So I have increased the quantity of washers instead. Add one washer behind the head and two washers behind the nut on each hinge attach bolt.
